Home
Fleet
All
Trailer Suction Hopper Dredgers
Cutter Suction Dredgers
Ancillary Crafts
Backhoe Dredger
ID Ganga
DCI Dredge - VIII
Brief Specification
Year of Built - 1977
Length Overall - 124.30
Breadth - 19.50M
Draft - 8.50M
Speed in Knots - 13
Hopper Capacity - 6500M3
Propulsion Power - 4X1670 HP
Dredging Power - 2X1900 HP
Maximum Dredging Depth - 25.0M
Gross Tonnage - 8151
Official Call Sign - 1747 ATRM
Inmarsat Id - 44195 6510
DCI Dredge - VIII

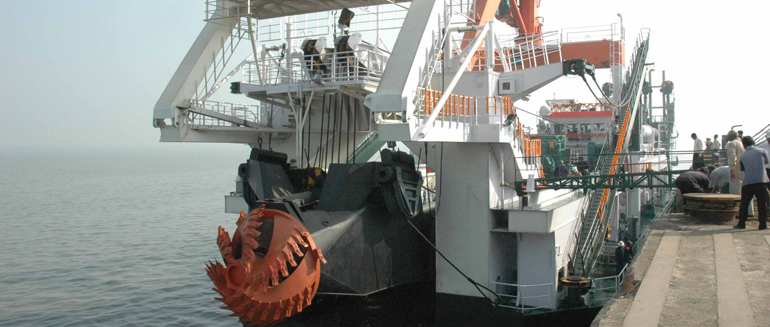

DCI Dredge - XVIII
Brief Specification
Length overall - 88.00M
Length between perpendiculars - 76.20M
Breadth moulded - 16.00M
Depth moulded - 4.35M
Draft - 3.00M
Dredge pump - 4050 KW@ 775 RPM
Cutter power - 1600 KW
Max. dredging depth - 25.00M
Pipeline (Discharge) - 800mm
Pumping Distance - 3000M
Anchorage System - Side Winches System
Classification
Indian Register of Shipping - 29769
Lloyd's Register of Shipping - 9475442
DCI Dredge - XVIII

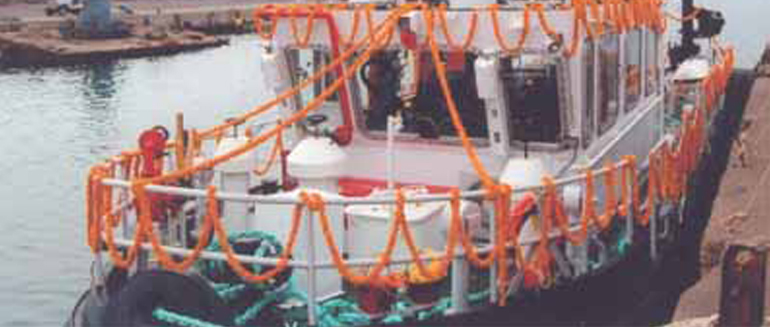

DCI Survey Launch -I
Brief Specification
Details Of DCI Survey Launch - I
Built By - GOOD WILL ENGINEERING
Built in - PONDYCHERY
Year of Built - 1998-99
Length Overall - 12.5 M
Breadth Moulded - 3.8 M
Depth at Side - 1.85 M
Max Draft - 1.2 M
Speed of the Launch - 9.0 KNOTS
Type of Propelled - TWIN SCREW
Type of Engine - 2 * 100 HP
Type of Gen. Capacity - 10 KV
Type of Body - STEEL HUL
Fuel Capacity - 1500 LIT
Fresh Water Capacity - 500 LIT
Max Height from under side of keel to top of Wheel House-4.75 M
DCI Survey Launch -I
Backhoe Dredger
Brief Specification
Backhoe Dredger, DCI Dredge BH - 1 with BA 800 Excavator built by Shipyard "De Donge", The Netherlands at a contract price of Euro 18.5 million ( Rs.129 Crores approx ) was taken over by DCI on 22nd November 2011.
Length - 55.68 m
Breadth - 16.00 m
Depth - 3.50 m
G R T - 977
N R T - 293
Dredging Depth (Max) - 21.5 m
Penetration Capacity (Max) - 90 Tons
Hourly Production rate (Max) - 370 cu.m./hr
Accommodation - 8 persons
Capable to dredge clay, soft rock & blasted rock having a compressive strength of 5mPa & compact soil of N value 80. Capable to navigate in the Ports with assisted propulsion.
Backhoe Dredger

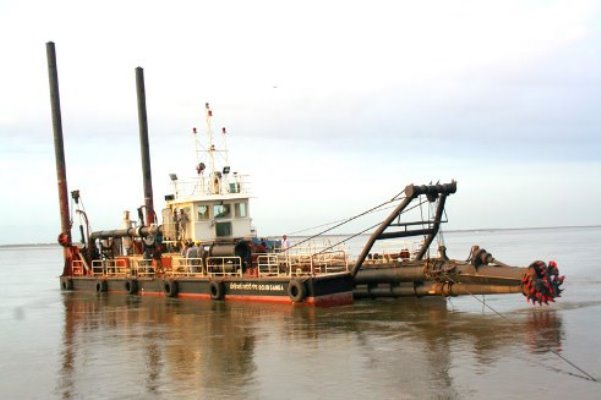

DCI ID Ganga
Brief Specification
Name of the ship - DCI ID GANGA
Port of Registry -Kakinada,Andhra Pradesh
Gross Tonnage -132
Net Tonnage - 40
Class -Indian Register of Shipping +IWL,Zone1 "Cutter Suction Dredger"
Dredge Pump Engine -1x1350 BHP @1900 RPM-Cummins Engine
Dredge Pump -Make:ITALDRAGHE , MODEL:SGTY 500R NB ,SUCTOIN/Deliever Dia:490/480mm ,Impeller Dia:1200mm(5 blades) ,RPM:503
Maximum Dredging Depth - 25.0M
Cutter Power -180KW
Light Weight of Ship -206.93Ton
Breadth (Mld) - 8.30M
DCI ID Ganga

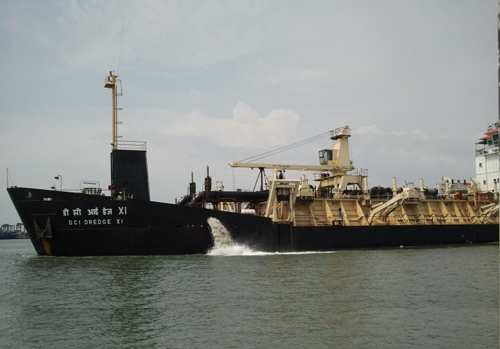

DCI Dredge - XI
Brief Specification
Year of Built - 1986
Length Overall - 102.60M
Breadth - 18.20M
Draft - 7.50M
Speed in Knots - 13.80
Hopper Capacity - 4500M3
Propulsion Power - 2X5250 HP
Dredging Power - 2X1428 HP
Maximum Dredging Depth - 25.0M
Gross Tonnage - 5159
Official Call Sign - 2140 VVGS
Inmarsat Id - 44195 6710
DCI Dredge - XI

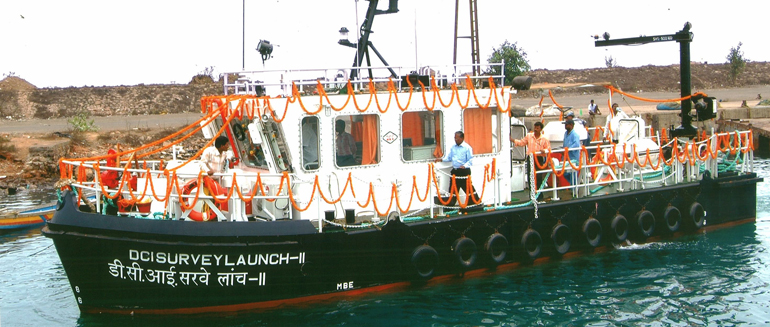

DCI Survey Launch II & III
Brief Specification
Nameof the Launch - DCI SURVEY LAUNCH-II & III
Built By - TEBMA SHIPYARDS LIMITED
Built In - CHENNAI
Year of Built - 2009
Length Overall - 16.00 M
Breadth Moulded - 4.50 M
Depth at Side - 2.490 M
Max Draft - 1.240 M
Speed of the Launch - 9.80 KNOTS
Type of Propelled - SELF PROPELLED
Type of Engine - 2x140 KW
Type of Gen. Capacity - 25 KV
Type of Body - STEEL
Fuel Capacity - 7.30 TONNES
Fresh Water Capacity - 0.50 TONNES
Max Height from under side of keel to top of Wheel House-5.20 M
DCI Survey Launch II & III

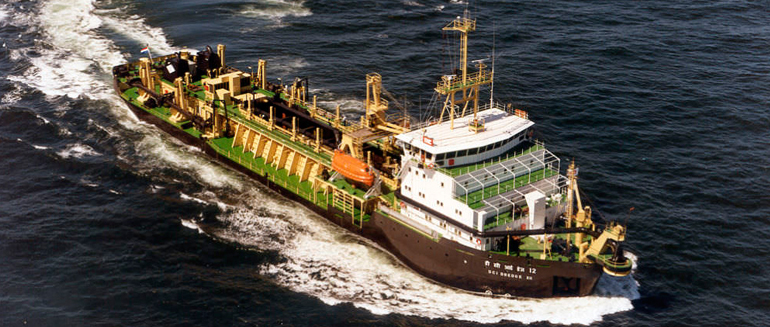

DCI Dredge - XII
Brief Specification
Year of Built - 1990
Length Overall - 110.31M
Breadth - 21.0M
Draft - 5.50M
Speed in Knots - 13
Hopper Capacity - 4500M3
Propulsion Power - 2X3887 HP
Dredging Power - 2X1005 HP
Maximum Dredging Depth - 22.0M
Gross Tonnage - 6355
Official Call Sign - 2406 VTTM
Inmarsat Id - 44195 6810
DCI Dredge - XII

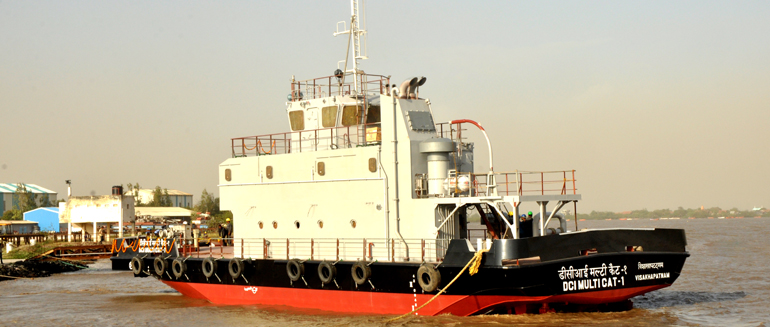

DCI Multicat-I
Brief Specification
Name - DCI Multicat-I
Year of Built - 2015
Length Overall - 32.003 M
Breadth - 12 M
Moulded depth - 4 M
Speed in Knots - 10 KNOTS
Dead Weight - 62.25 MT
Propulsion power - 2685 Kw
Gross Tonnage - 408
Official Call sign - 4205 AWJK
IMO No - 9783186
MMSI - 419000968
DCI Multicat-I

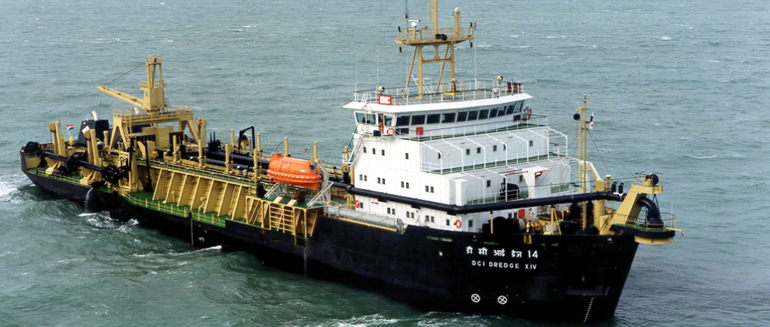

DCI DREDGE XIV
Brief Specification
Year of Built - 1991
Length Overall - 110.31M
Breadth - 21.0M
Draft - 5.50M
Speed in Knots - 13
Hopper Capacity - 4500M3
Propulsion Power - 2X3887 HP
Dredging Power - 2X1005 HP
Maximum Dredging Depth - 22.0M
Gross Tonnage - 6355
Official Call Sign - 2407 VTTN
Inmarsat Id - 44195 6910
DCI DREDGE XIV

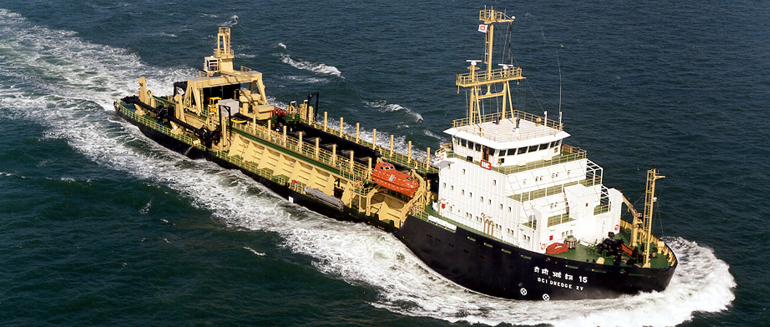

DCI DREDGE XV
Brief Specification
Year of Built - 1999
Length Overall - 122.0M
Breadth - 20.30M
Draft - 8.50M
Speed in Knots - 14.80
Hopper Capacity - 7400M3
Propulsion Power - 2X5094 HP
Dredging Power - 2X1552 HP
Maximum Dredging Depth - 25.0M
Gross Tonnage - 8070
Official Call Sign - 2708 VTKU
Inmarsat Id - 44194 8110
DCI DREDGE XV

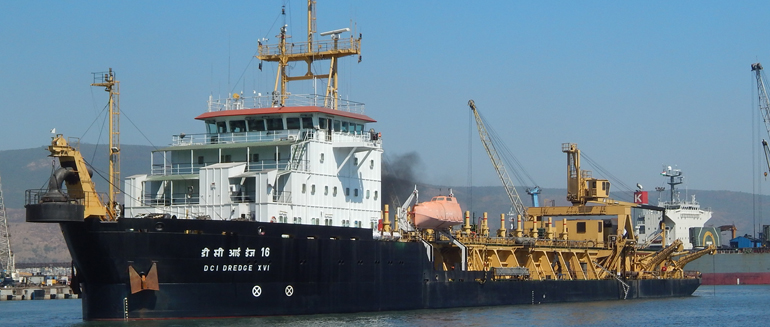

DCI DREDGE XVI
Brief Specification
Year of Built - 2001
Length Overall - 122.0M
Breadth - 20.30M
Draft - 8.50M
Speed in Knots - 14.80
Hopper Capacity - 7400M3
Propulsion Power - 2X5228 HP
Dredging Power - 2X1552 HP
Maximum Dredging Depth - 25.0M
Gross Tonnage - 8049
Official Call Sign - 2875 VTKU
Inmarsat Id - 44190 0170
DCI DREDGE XVI

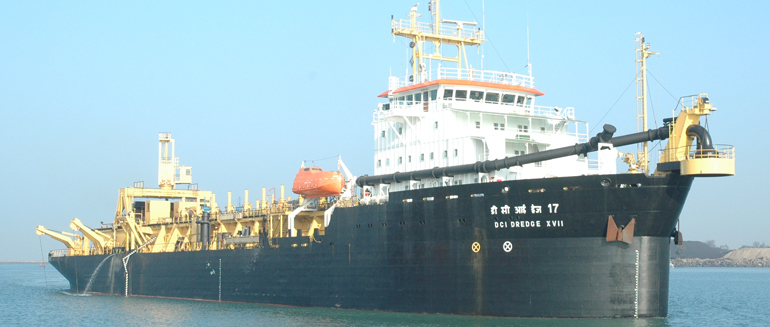

DCI DREDGE XVII
Brief Specification
Year of Built - 2001
Length Overall - 122.0M
Breadth - 20.30M
Draft - 8.50M
Speed in Knots - 14.80
Hopper Capacity - 7400M3
Propulsion Power - 2X5228 HP
Dredging Power - 2X1588 HP
Maximum Dredging Depth - 25.0M
Gross Tonnage - 8049
Official Call Sign - 2876 VTKU
Inmarsat Id - 44190 0193
DCI DREDGE XVII

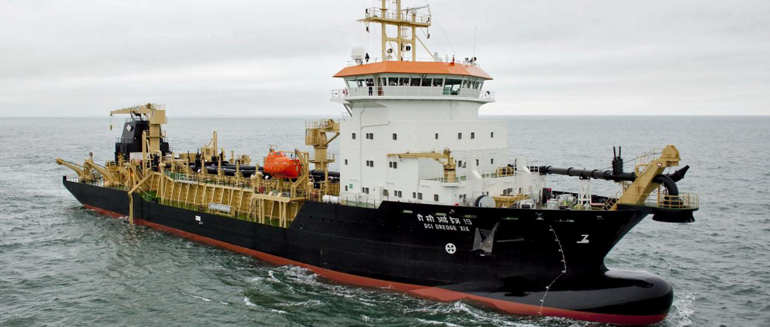

DREDGE DCI XIX
Brief Specification
Year of Built - 2012
Length Overall - 114.0M
Breadth - 21.30M
Draft - 7.50M
Speed in Knots - 14.10
Hopper Capacity - 5500 M3
Propulsion Power - 2X4100 KW
Dredging Power -
Maximum Dredging Depth - 25.0M
Gross Tonnage -
Official Call Sign - 3733 AVGY
Inmarsat Id -
DREDGE DCI XIX
DREDGE DCI XX
Brief Specification
Year of Built - 2013
Length Overall - 114.0M
Breadth - 21.30M
Draft - 7.50M
Speed in Knots - 14.10
Hopper Capacity - 5500 M3
Propulsion Power - 2X4100 KW
Dredging Power -
Maximum Dredging Depth - 25.0M
Gross Tonnage -
Official Call Sign - 3733 AVGY
Inmarsat Id -
DREDGE DCI XX
DREDGE DCI XXI
Brief Specification
Year of Built - 2013
Length Overall - 114.0M
Breadth - 21.30M
Draft - 7.50M
Speed in Knots - 14.10
Hopper Capacity - 5500 M3
Propulsion Power - 2X4100 KW
Dredging Power -
Maximum Dredging Depth - 25.0M
Gross Tonnage -
Official Call Sign - 3733 AVGY
Inmarsat Id -
DREDGE DCI XXI
DCI Dredge - VIII
Brief Specification
Year of Built - 1977
Length Overall - 124.30
Breadth - 19.50M
Draft - 8.50M
Speed in Knots - 13
Hopper Capacity - 6500M3
Propulsion Power - 4X1670 HP
Dredging Power - 2X1900 HP
Maximum Dredging Depth - 25.0M
Gross Tonnage - 8151
Official Call Sign - 1747 ATRM
Inmarsat Id - 44195 6510
DCI Dredge - VIII
DCI Dredge - XI
Brief Specification
Year of Built - 1986
Length Overall - 102.60M
Breadth - 18.20M
Draft - 7.50M
Speed in Knots - 13.80
Hopper Capacity - 4500M3
Propulsion Power - 2X5250 HP
Dredging Power - 2X1428 HP
Maximum Dredging Depth - 25.0M
Gross Tonnage - 5159
Official Call Sign - 2140 VVGS
Inmarsat Id - 44195 6710
DCI Dredge - XI
DCI Dredge - XII
Brief Specification
Year of Built - 1990
Length Overall - 110.31M
Breadth - 21.0M
Draft - 5.50M
Speed in Knots - 13
Hopper Capacity - 4500M3
Propulsion Power - 2X3887 HP
Dredging Power - 2X1005 HP
Maximum Dredging Depth - 22.0M
Gross Tonnage - 6355
Official Call Sign - 2406 VTTM
Inmarsat Id - 44195 6810
DCI Dredge - XII
DCI DREDGE XIV
Brief Specification
Year of Built - 1991
Length Overall - 110.31M
Breadth - 21.0M
Draft - 5.50M
Speed in Knots - 13
Hopper Capacity - 4500M3
Propulsion Power - 2X3887 HP
Dredging Power - 2X1005 HP
Maximum Dredging Depth - 22.0M
Gross Tonnage - 6355
Official Call Sign - 2407 VTTN
Inmarsat Id - 44195 6910
DCI DREDGE XIV
DCI DREDGE XV
Brief Specification
Year of Built - 1999
Length Overall - 122.0M
Breadth - 20.30M
Draft - 8.50M
Speed in Knots - 14.80
Hopper Capacity - 7400M3
Propulsion Power - 2X5094 HP
Dredging Power - 2X1552 HP
Maximum Dredging Depth - 25.0M
Gross Tonnage - 8070
Official Call Sign - 2708 VTKU
Inmarsat Id - 44194 8110
DCI DREDGE XV
DCI DREDGE XVI
Brief Specification
Year of Built - 2001
Length Overall - 122.0M
Breadth - 20.30M
Draft - 8.50M
Speed in Knots - 14.80
Hopper Capacity - 7400M3
Propulsion Power - 2X5228 HP
Dredging Power - 2X1552 HP
Maximum Dredging Depth - 25.0M
Gross Tonnage - 8049
Official Call Sign - 2875 VTKU
Inmarsat Id - 44190 0170
DCI DREDGE XVI
DCI DREDGE XVII
Brief Specification
Year of Built - 2001
Length Overall - 122.0M
Breadth - 20.30M
Draft - 8.50M
Speed in Knots - 14.80
Hopper Capacity - 7400M3
Propulsion Power - 2X5228 HP
Dredging Power - 2X1588 HP
Maximum Dredging Depth - 25.0M
Gross Tonnage - 8049
Official Call Sign - 2876 VTKU
Inmarsat Id - 44190 0193
DCI DREDGE XVII
DREDGE DCI XIX
Brief Specification
Year of Built - 2012
Length Overall - 114.0M
Breadth - 21.30M
Draft - 7.50M
Speed in Knots - 14.10
Hopper Capacity - 5500 M3
Propulsion Power - 2X4100 KW
Dredging Power -
Maximum Dredging Depth - 25.0M
Gross Tonnage -
Official Call Sign - 3733 AVGY
Inmarsat Id -
DREDGE DCI XIX
DREDGE DCI XX
Brief Specification
Year of Built - 2013
Length Overall - 114.0M
Breadth - 21.30M
Draft - 7.50M
Speed in Knots - 14.10
Hopper Capacity - 5500 M3
Propulsion Power - 2X4100 KW
Dredging Power -
Maximum Dredging Depth - 25.0M
Gross Tonnage -
Official Call Sign - 3733 AVGY
Inmarsat Id -
DREDGE DCI XX
DREDGE DCI XXI
Brief Specification
Year of Built - 2013
Length Overall - 114.0M
Breadth - 21.30M
Draft - 7.50M
Speed in Knots - 14.10
Hopper Capacity - 5500 M3
Propulsion Power - 2X4100 KW
Dredging Power -
Maximum Dredging Depth - 25.0M
Gross Tonnage -
Official Call Sign - 3733 AVGY
Inmarsat Id -
DREDGE DCI XXI
DCI Dredge - XVIII
Brief Specification
Length overall - 88.00M
Length between perpendiculars - 76.20M
Breadth moulded - 16.00M
Depth moulded - 4.35M
Draft - 3.00M
Dredge pump - 4050 KW@ 775 RPM
Cutter power - 1600 KW
Max. dredging depth - 25.00M
Pipeline (Discharge) - 800mm
Pumping Distance - 3000M
Anchorage System - Side Winches System
Classification
Indian Register of Shipping - 29769
Lloyd's Register of Shipping - 9475442
DCI Dredge - XVIII
DCI Survey Launch -I
Brief Specification
Details Of DCI Survey Launch - I
Built By - GOOD WILL ENGINEERING
Built in - PONDYCHERY
Year of Built - 1998-99
Length Overall - 12.5 M
Breadth Moulded - 3.8 M
Depth at Side - 1.85 M
Max Draft - 1.2 M
Speed of the Launch - 9.0 KNOTS
Type of Propelled - TWIN SCREW
Type of Engine - 2 * 100 HP
Type of Gen. Capacity - 10 KV
Type of Body - STEEL HUL
Fuel Capacity - 1500 LIT
Fresh Water Capacity - 500 LIT
Max Height from under side of keel to top of Wheel House-4.75 M
DCI Survey Launch -I
DCI Survey Launch II & III
Brief Specification
Nameof the Launch - DCI SURVEY LAUNCH-II & III
Built By - TEBMA SHIPYARDS LIMITED
Built In - CHENNAI
Year of Built - 2009
Length Overall - 16.00 M
Breadth Moulded - 4.50 M
Depth at Side - 2.490 M
Max Draft - 1.240 M
Speed of the Launch - 9.80 KNOTS
Type of Propelled - SELF PROPELLED
Type of Engine - 2x140 KW
Type of Gen. Capacity - 25 KV
Type of Body - STEEL
Fuel Capacity - 7.30 TONNES
Fresh Water Capacity - 0.50 TONNES
Max Height from under side of keel to top of Wheel House-5.20 M
DCI Survey Launch II & III
DCI Multicat-I
Brief Specification
Name - DCI Multicat-I
Year of Built - 2015
Length Overall - 32.003 M
Breadth - 12 M
Moulded depth - 4 M
Speed in Knots - 10 KNOTS
Dead Weight - 62.25 MT
Propulsion power - 2685 Kw
Gross Tonnage - 408
Official Call sign - 4205 AWJK
IMO No - 9783186
MMSI - 419000968
DCI Multicat-I
Backhoe Dredger
Brief Specification
Backhoe Dredger, DCI Dredge BH - 1 with BA 800 Excavator built by Shipyard "De Donge", The Netherlands at a contract price of Euro 18.5 million ( Rs.129 Crores approx ) was taken over by DCI on 22nd November 2011.
Length - 55.68 m
Breadth - 16.00 m
Depth - 3.50 m
G R T - 977
N R T - 293
Dredging Depth (Max) - 21.5 m
Penetration Capacity (Max) - 90 Tons
Hourly Production rate (Max) - 370 cu.m./hr
Accommodation - 8 persons
Capable to dredge clay, soft rock & blasted rock having a compressive strength of 5mPa & compact soil of N value 80. Capable to navigate in the Ports with assisted propulsion.
Backhoe Dredger
DCI ID Ganga
Brief Specification
Name of the ship - DCI ID GANGA
Port of Registry -Kakinada,Andhra Pradesh
Gross Tonnage -132
Net Tonnage - 40
Class -Indian Register of Shipping +IWL,Zone1 "Cutter Suction Dredger"
Dredge Pump Engine -1x1350 BHP @1900 RPM-Cummins Engine
Dredge Pump -Make:ITALDRAGHE , MODEL:SGTY 500R NB ,SUCTOIN/Deliever Dia:490/480mm ,Impeller Dia:1200mm(5 blades) ,RPM:503
Maximum Dredging Depth - 25.0M
Cutter Power -180KW
Light Weight of Ship -206.93Ton
Breadth (Mld) - 8.30M
DCI ID Ganga
Whatsapp
Call Us
